YK-12
Speaker type：12 inch two-way
Rated power：350W(RMS)
Frequency response：60Hz-20kHz (-6db)
Components：3" voice coil 12" cone bass driver, 1.75" voice coil compression tweeter driver
Nominal Impedance：8Ω
Max SPL：124db
Radiation angle：80x+20,-45(H x V)
Size：745H×445W×390D(mm)
Weight：38kg
Input interface：NL4MP*2
Cabinet material：15mm birch plywood
Surface treatment：Black waterproof and wear-resistant polyurea paint
MA-15B
Components：Single 15'Full Range Monitor Spea ker
Rated Power：450 W
Frequency Response：45 Hz-18 kHz
Nominallmpedance：8Ω
Sensitivity：97 dB (1W/lm)
SPL Continuous：124 dB
SPL Max lW @ Im：130 dB
Dispersion：60x40 (HxV)
Dimensions(mm)：717x442x363 (HxWxD)
Weight：38 kg
Cabinet Material：18mm Birch Plywood
Coating：Polyurea / Water Paint
UA-121M
Components：12'Stage Monitor Speaker
Rated Power：300 W
Frequency Response：50 Hz-17 kHz
Nominallmpedance：8Ω
Sensitivity：96 dB (1W/lm)
SPL Continuous：121 dB
SPL Max lW @ Im：127 dB
Dispersion：90x40 (HxV)
Dimensions(mm)：373x574x378 (HxWxD)
Weight：25 kg
Cabinet Material：15mm Birch Plywood
Coating：Water Paint
UA-215A
Components：Dual 15" 2-Way Full Range Speaker
Rated Power：850 W
Frequency Response：50 Hz-18 kHz
Nominal Impedance：4Ω
Sensitivity：102 dB(1W/lm)
SPL Continuous：130 dB
SPL Max lW @ Im：136 dB
Dispersion：60x40 (HxV)
Dimensions(mm)：1240x500x495 (HxWx D)
Weight：71 kg
Cabinet Material：18mm Birch Plywood
Coating：Polyurea
MA-215N
Components：Dual 15" 2-Way Full Range Speaker
Rated Power：900 W
Frequency Response：50 Hz-18 kHz
Nominal Impedance：4Ω
Sensitivity：102 dB(1W/lm)
SPL Continuous：132 dB
SPL Max lW @ Im：138 dB
Dispersion：60x40 (HxV)
Dimensions(mm)：1234x500x500 (HxWx D)
Weight：65 kg
Cabinet Material：15mm Birch Plywood
Coating：Polyurea
TC-8
Com ponents：2-Way Full Range Speaker
Rated Power：150 W
Frequency Response：65 Hz-21 kHz
Nominallmpedance：8Ω
Sensitivity：95 dB(1W/1 m)
SPL Continuous：117 dB
SPL Max lW @ 1m：123 dB
Dispersion：NxA (HxV)
Dimensions(mm)：460x260x285(HxWxD)
Weight：12 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint
TC-10
Com ponents：2-Way Full Range Speaker
Rated Power：250 W
Frequency Response：65 Hz-19 kHz
Nominallmpedance：8Ω
Sensitivity：96 dB(1W/1 m)
SPL Continuous：119 dB
SPL Max lW @ 1m：125 dB
Dispersion：NxA (HxV)
Dimensions(mm)：510x350x320(HxWxD)
Weight：17.4 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint
TC-12
Com ponents：2-Way Full Range Speaker
Rated Power：350 W
Frequency Response：70 Hz-19 kHz
Nominallmpedance：8Ω
Sensitivity：97 dB(1W/1 m)
SPL Continuous：124 dB
SPL Max lW @ 1m：130 dB
Dispersion：NxA (HxV)
Dimensions(mm)：595x400x360(HxWxD)
Weight：26.5 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint
TC-15
Com ponents：2-Way Full Range Speaker
Rated Power：350 W
Frequency Response：50 Hz-18 kHz
Nominallmpedance：8Ω
Sensitivity：98 dB(1W/1 m)
SPL Continuous：125 dB
SPL Max lW @ 1m：131 dB
Dispersion：NxA (HxV)
Dimensions(mm)：711 x438x380(HxWxD)
Weight：38 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint

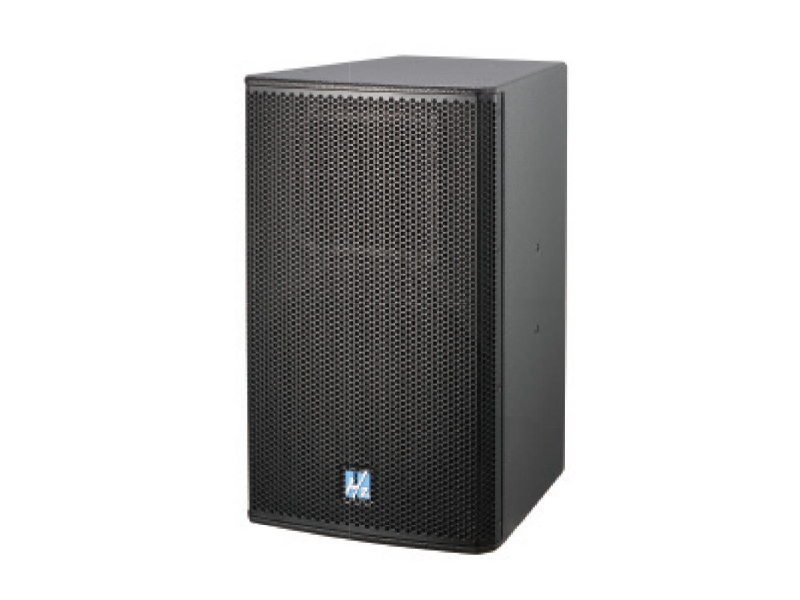

TB-10
Components：2-Way Full Range Speaker
Rated Power：250 W
Frequency Response：65 Hz-19 kHz
Nominallmpedance 80)：8Ω
Sensitivity：96 dB(1W/1 m)
SPL Continuous：119 dB
SPL Max lW @ Im：125 dB
Dispersion：NxA (HxV)
Dimensions(mm)：510x300x355(HxWxD)
Weight：17.6 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint
TB-12
Components：2-Way Full Range Speaker
Rated Power：350W
Frequency Response：55 Hz-19 kHz N
ominallmpedance 80)：8Ω
Sensitivity：97 dB (1W/1m)
SPL Continuous：124 dB
SPL Max lW @ Im：130 dB
Dispersion：NxA (HxV)
Dimensions(mm)：590x349x400(HxWx D)
Weight：25.6 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint

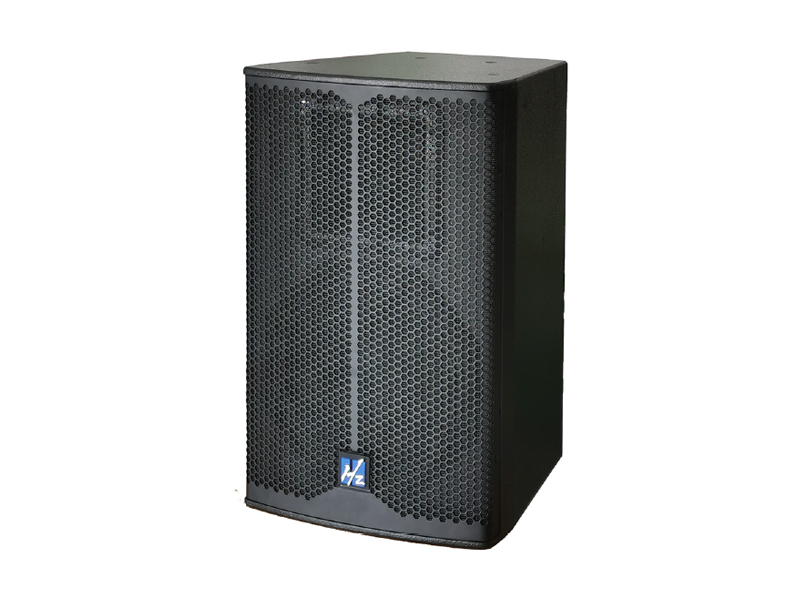

K10
Components：2-Way Full Range Speaker
Rated Power：250 W
Frequency Response：65 Hz-19 kHz
Nominallmpedance：8Ω
Sensitivity：96 dB(1W/1m)
SPL Continuous：119 dB
SPL MaxlW @1m：125 dB
Dispersion：NxA (HxV)
Dimensions(m m)：510x3300x355(HxWx D)
Weight：17.6 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint
K12
Components：2-Way Full Range Spea ker
Rated Power：500 W
Frequency Response：50 Hz-20 kHz
Nominallmpedance：8Ω
Sensitivity：97 dB(1W/1 m)
SPL Continuous：124 dB
SPL MaxlW @1m：130 dB
Dispersion：NxA (HxV)
Dimensions(m m)：590x349x400(HxWxD)
Weight：25.6 kg
Cabinet Material：15mm Birch Plywood
Coating：Black Water Paint
