Subwoofer
Line Arrays
Subwoofer
Point Source
Sound Post
Movie

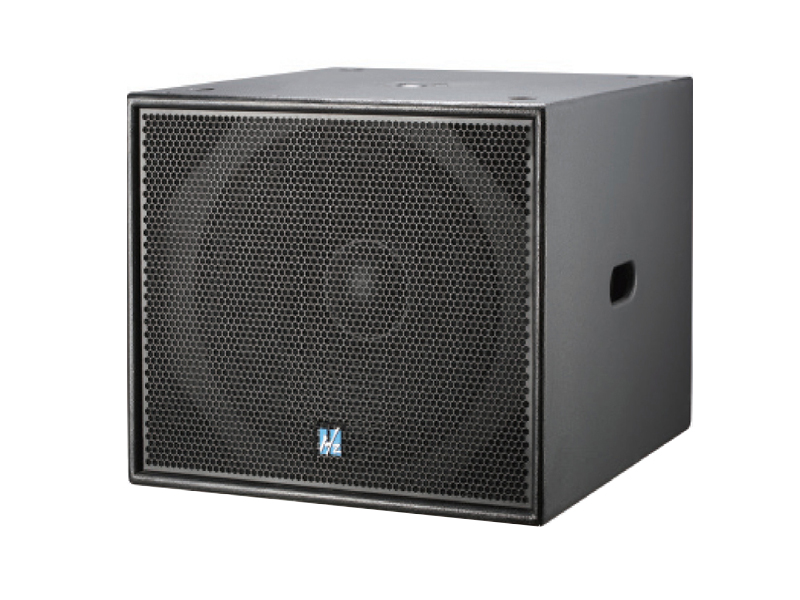

SUB-118
Components:Single 18Subwoofer
Rated Power:800W AES
Frequency Response:35 Hz-1 kHz
Nominal Impedance:8Ω
Sensitivity:100 dB (1W/1m)
SPL Continuous:129 dB
SPL Max lW @ Im:135 dB
Dimensions(mm):530x640x700 (HxWx D)
Weight:43 kg
Cabinet Material:18mm Birch Plywood
Coating:Water Paint
Displays details
SUB-218
Components:Dual 18'Subwoofer Speaker System
Rated Power:1600 W AES
Frequency Response:30 Hz - 1 kHz
Nominallmpedance:4Ω
Sensitivity:103 dB
SPL Continuous:133 dB
SPL Max lW @ 1m:139 dB
Dimensions(mm):555x1068x800(HxWx D)
Weight:83 kg
Cabinet Material:18mm Birch Plywood
Coating:Water Paint
Displays details

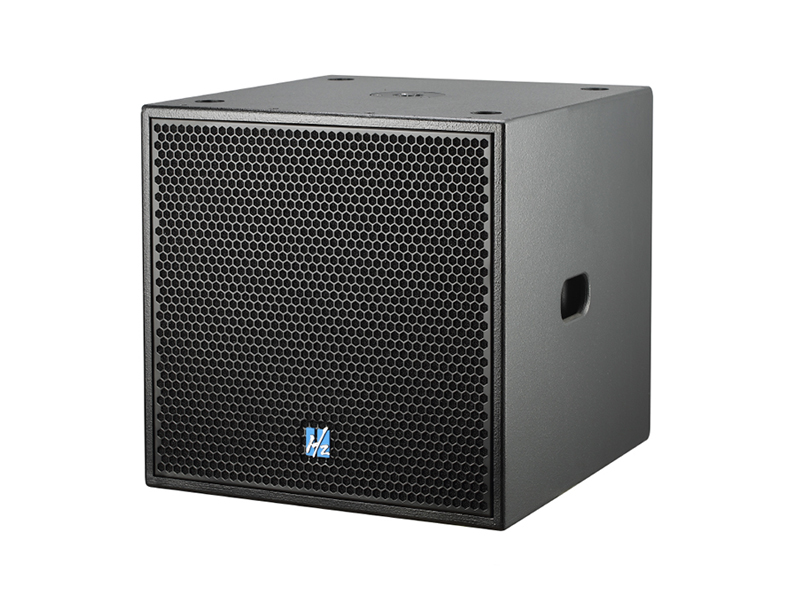

SUB-115
Power rating:400W
Frequency response:33 Hz - 150 Hz (-6dB)
Max SPL:132 dB
Components:Voice coil 100 mm in diameter,1 5 'ferrite magnetic circuit u nit
Dimensions(mm):745x518x550 (HxWx D)
Weight:37 kg
Panel material:12mm birch plywood
Painted:Black water paint
Top wire:1.5 mm perforated steel plate,the back acoustics acoustic sponge
Displays details

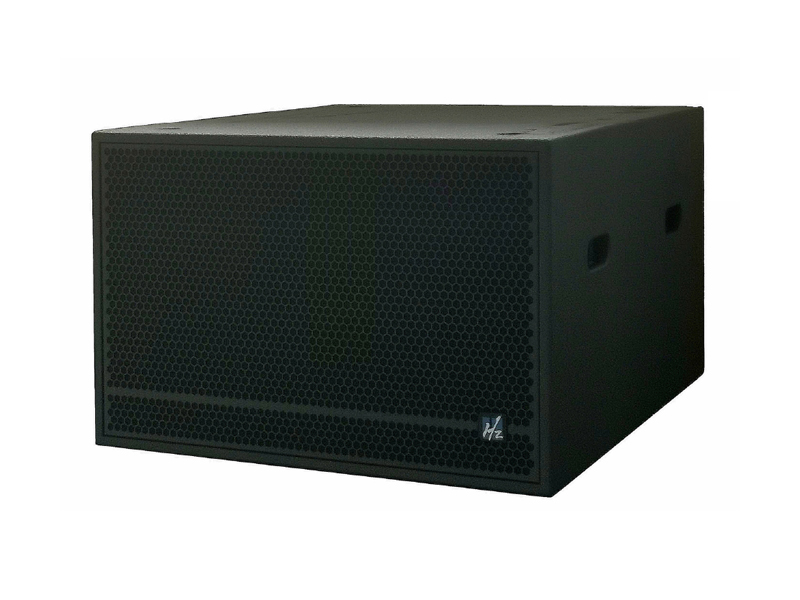

US-1
Transducers:1x21" neodymium
Power rating:2000W AES
Frequency response:32 Hz - 300 Hz (-6dB)
Nominal impedance:8Ω
Directivity(H x V):/
Max SPL:143 dB
input interface:N L4M P*2
Dimensions (mm):H548xW860xD785
Weight:71 kg
Panel material:18mm Birch plywood
Panel material:Polyurea coatings
Top wire:1.5 mm perforated steel plate,the back acoustics acoustic sponl
Ω
Displays details

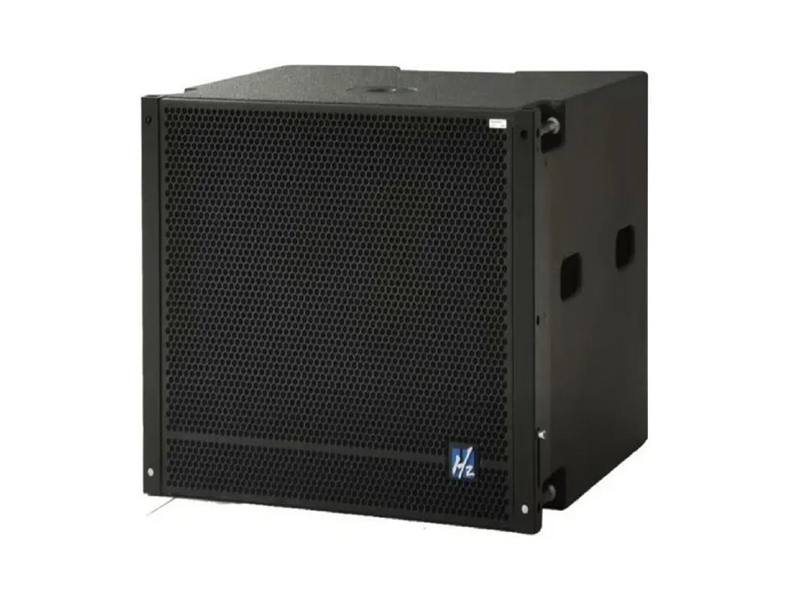

LS-5
Frequency response(-6 dB):35Hz-200 Hz
Maximum sound pressure(1 m, free field):138dB
Nominal impedance:8 0hm
Power handling capacity(RMS/peak 10ms):1200W W
Horizontal Radiation Angle
Spread Angle Setting
vertical adjustment increment
Components:1x18"diameter voice coil LF drivers
passive crossover network
Size:548Hx630Wx580D(mm)
Weight:44kg(44 lb)
Box material:birch plywood
surface treatment:black polyurea paint
Displays details

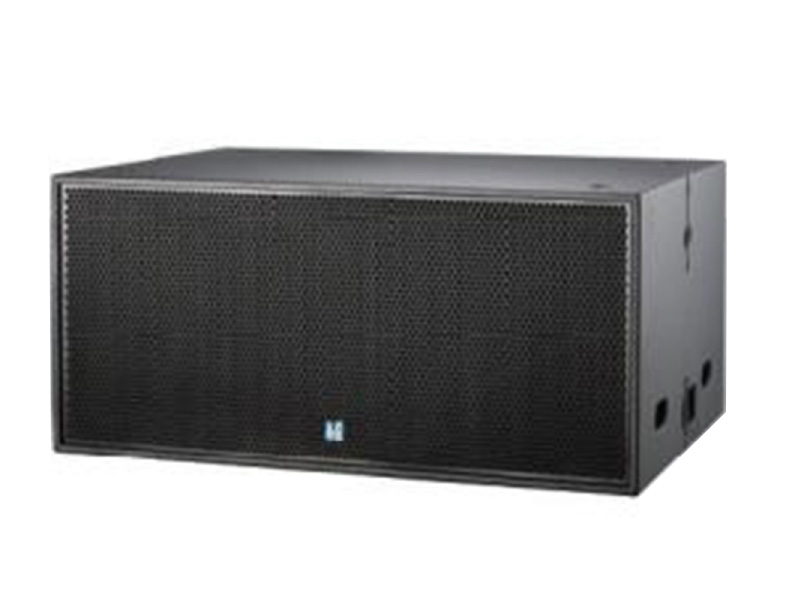

LS-2
Components:LF:18" x2
Rated Power:4000W AES
Frequency Response:25 Hz-1k Hz
Nominal impedance:4Ω
Sensitivity:102 dB(1W/1m)
SPL Continuous:135 dB
Max SPL:141 dB
Dimensions:548H x 1166W x 825D(mm)
Weight:89 kg
Panel material:18mm birch plywood
Painted:polyurea coatings
Displays details

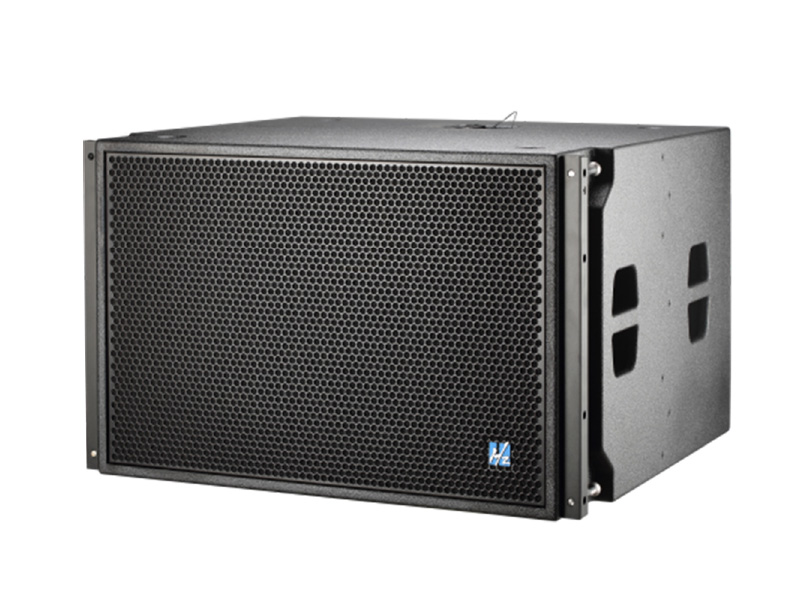

LS-1
Components:1x18" NdFeB drive magnetic circuit with,18-inch external magnetic circuit structure
Rated Power:2000W AES
Frequency Response:34Hz-300Hz(-6dB)
Nominal impedance:8Ω
Sensitivity
SPL Continuous
Max SPL:141 dB
Dimensions:548H x 860W x 785D (mm)
Weight:70 kg
Panel material:18mm birch plywood
Painted:Black polyurea coatings
input interface:NL4MP*2
Displays details

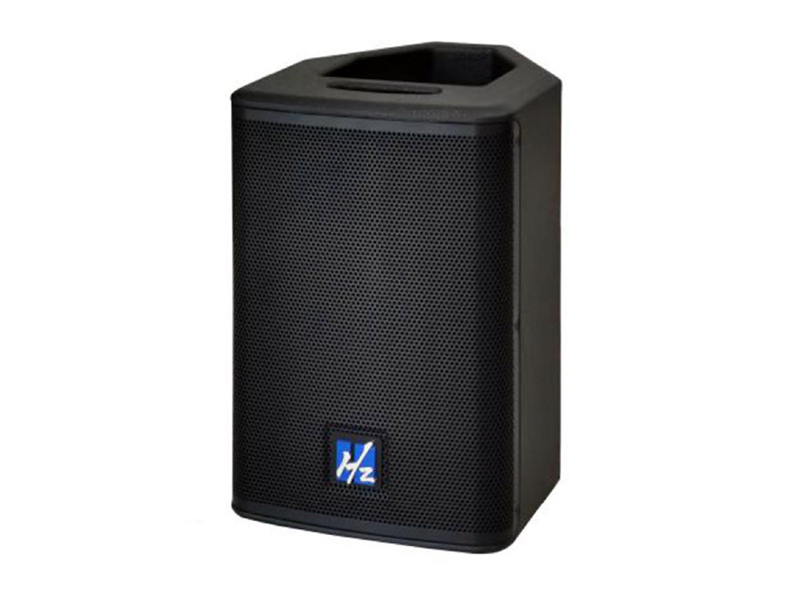

KS-8
model type:KS-8 multifunctional battery speaker
power supply:12.6V 14AH
Power amplifier:150W(RMS), with DSP digital processor
battery life:6-8 hours
Frequency response:52 Hz - 20k Hz (-6dB)
Transducers:8-inch 36mm voice coil bass,34mm compression tweeter driver,Coaxial neodymium magnetic circuit
input interface:AUX/TRS/XLR/Bluetooth
size:385Hx251Wx288D (mm)
weight:7.1 kg
paint:Black polyurea paint/light blue water-based environmental protection paint (optional)
Accessories:Charger/internal recording line/backpack/two handheld U-segment wireless microphones
Displays details
